EUM-146

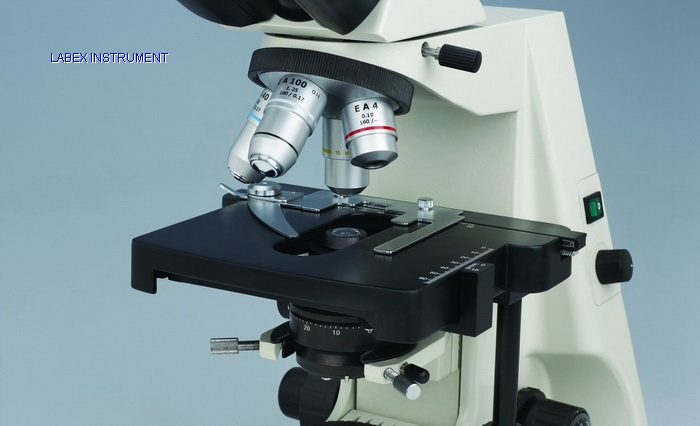

Binocular Biological Microscope EUM-146



Specification:

*Viewing Head: Seidentopf Binocular Head, 30 degree inclined,
                         IPD=55-75mm, Diopter adjustment
*Eyepiece: WF10X/20mm
*Achromatic objective: 4X, 10X, 40X(s), 100X(s, oil)
*Stage: Double layers mechanical stage, 180x150mm/75x50mm
*Condenser: Abbe NA=1.25 with Iris diaphragm and filter
*Kohler Illumination: 6V-20W, Halogen lamp, Adjustable brightness
*Focusing: Coaxial Coarse & Fine Adjustment; Focusing range 30mm; Focusing interval 0.002mm
*Power Supply: 85V ~ 265V universal voltage


Standard accessory:

*6V/20W spare halogen lamp --- 1pc
*BGX1-20(0.5A) fuse --- 1pc
*Filters (Blue) --- 1pc
*Immersion oil --- 1 bottle;
*Dust cover---1pc
*Instruction manual in English --- 1pc
