EUM-146FT

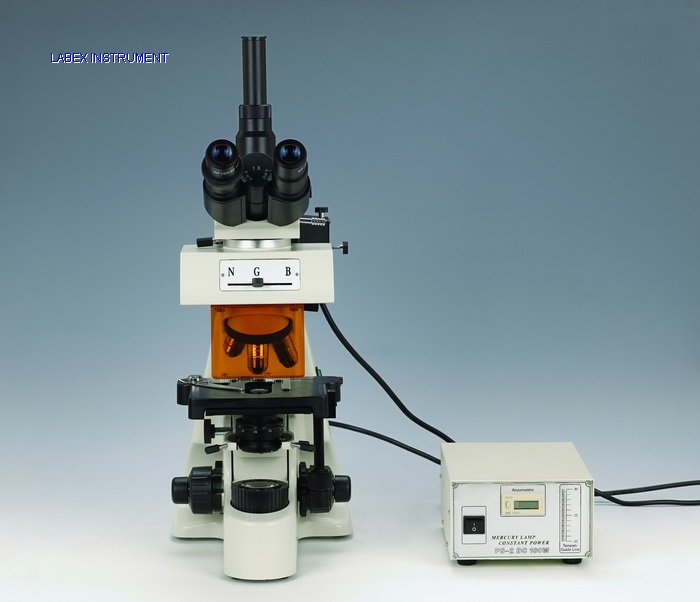

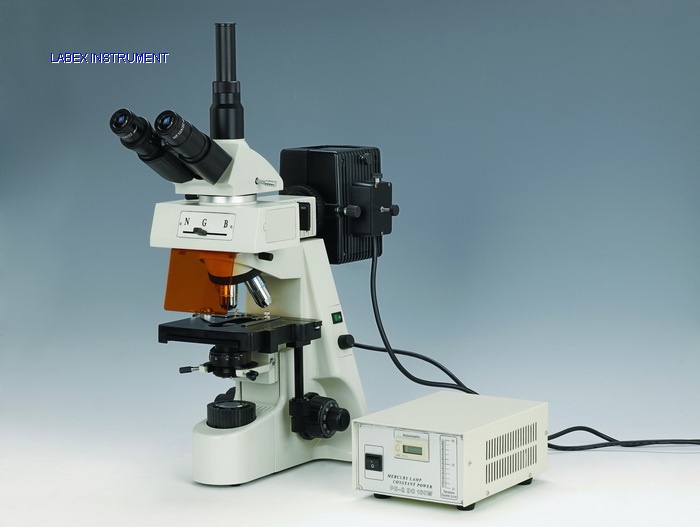

Epi-Fluorescence Microscope EUM-146FT


Specification:

*Viewing Head: Trinocular Head, 45 degree inclined, 360 degree Rotation, IPD=55-75mm, Diopter adjustment
*Eyepiece: WF10X
*Objective: Universal Infinity Plan Objective 4X, 10X, 40X(s), 100X(s, oil)
*Stand: Stable metal stand, fiited on both sides with coxial adjustment
*Stage: Double layers mechanical stage, 155mmx145mm or bigger, moving slide 80(X)x50(Y)mm
*Condenser: Abbe NA=1.25 with Iris diaphrame and filter
*Kohler Illumination: 6V-20W, Halogen lamp, Adjustable brightness
*Power Supply: 85V ~ 265V/50Hz universal power supply
*Focusing: Coaxial Coarse and Fine Adjustment, Focusing range 30mm, Focusing interval 0.002mm

Fluorescence Attachment:

*Fluorescence light spectrum range: 420nm-650nm (Blue), (Green) excitation Filter system
*100WHBO Ultra Hi-Voltage Spherical Mercury Lamp

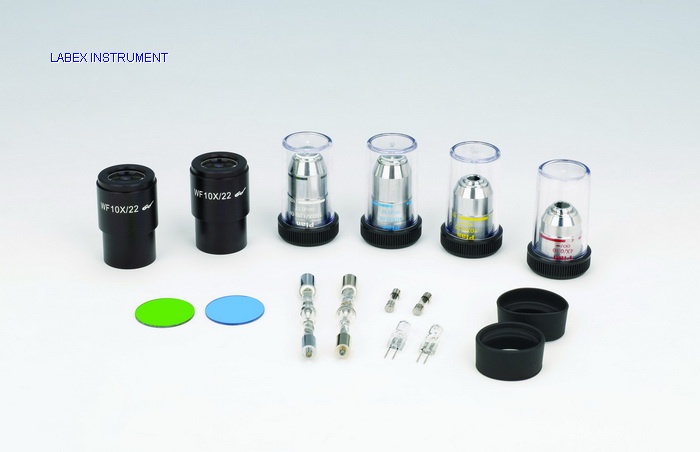

Standard accessory:

*6V/20W spare halogen lamp --- 1pc
*Filters (Blue) --- 1pc
*Immersion oil --- 1 bottle;
*Dust cover---1pc
*Instruction manual in English --- 1pc
