Scopepad-LX116W 11.6 inch microscope tablet

Product name：Scopepad-LX116W 11.6 inch microscope tablet

Item：Scopepad-LX116W

Details：

Scopepad series

Microscope smart tablet

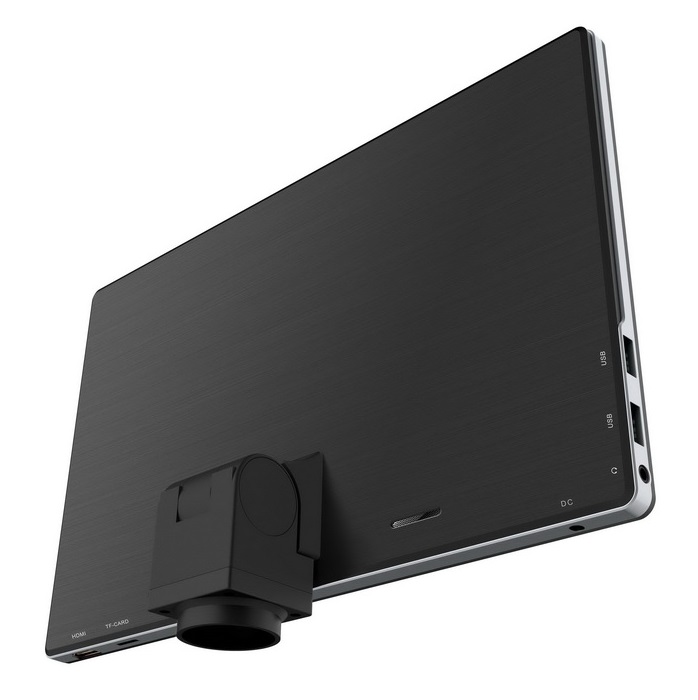

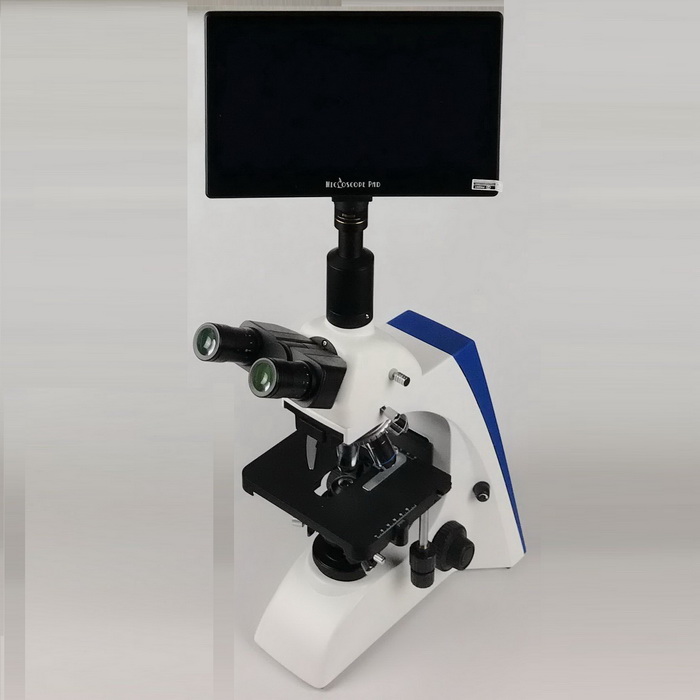

Scopepad series is All in one (USB+SD card+WIFI mouse+HD Screen Display) C-mount tablet with high sensitivity CMOS sensor, which have following features:

- CNC precision machining shell;

- Built-in image capture & video record to memory card;

- Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and easy control;

- Built-in toolbar including measurement, cross, browser functions;

- Built-in image & video browsing, display & play;

- Ultra-Fine color engine with perfect color reproduction capability(USB);

- Support WIFI Mouse

Specification:

Model Name	Scopepad-LX116W

Category	11.6 inch touch screen LCD monitor

Sensor size	MN34120 1/2.3”

Effective pixel	16Mega pixel resolution, equal as 4032X3024 resolution

Resolution	30fps@1080P
Resolution	30fps@1080P

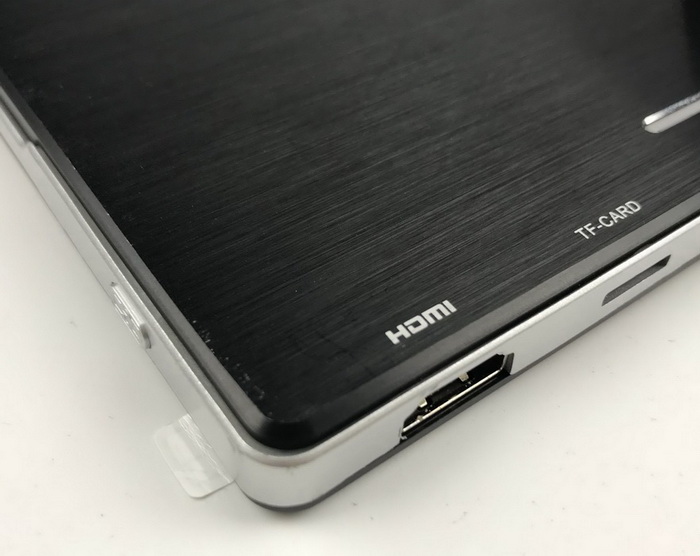

Output interface	USB2.0, SD Card, HDMI, WIFI

Pixel Size	1.335μm×1.335μm

Power	DC-12V

UI Desktop	Digital design, touch screen or mouse operation, humanized setting
Mark function	Point coordinates, cross lines, coordinate systems, text annotations

Length measuring	Line length, line length, length of curve, parallel line distance and point line distance

Center distance of circles	Radius fixed circle, two point circle, three point fixed circle

Geometry measurement	Line length, radius fixed circle, two point circle, three point fixed circle, concentric circle

Geometry area	Polygon and square

Measuring tool	S-eye software
