TDM-500 Jewellry Microscope

TDM-500 Jewellry Microscope

Product name:TDM-500 Jewellry Microscope

Item:

Details:

TDM-500 Jewellry Microscope




Specification:



*Viewing Head: 45 degree inclined and 360 rotatable Trinocular head with locked in eyepiece
The left ocular-tube with dippter adjustment +/- 5dp.
Interpupillary distance is between55~75mm
*Eyepiece:WF10X/22MM
*Objective: 2X, 4X
*Focusing: pinion and rack, controlled by knobs on both sides
*Working distance: 76mm
*Incident illumination: Halogen Lamp 12V/10W incandescent lamp
*Transmitted illumination: Halogen Lamp 12V/10W incandescent lamp
*Power Supply: 110V/60Hz or 220V/50Hz

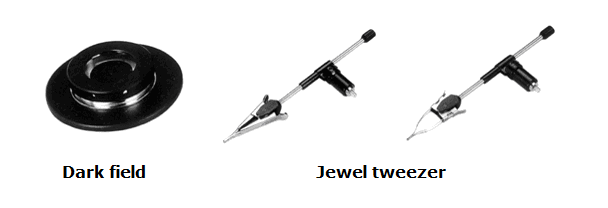

*Special Accessory: Jewel tweezer, Dark field working stage, see following picture






Standard Accessory:

*Dust Cover --- 1pc
*
Instruction Manual in English --- 1pc
*
Eyecups --- 1pair



Optional Accessory:

* Eyepiece: WF5X, WF10X, WF15X, WF20X
* Auxiliary objective: 0.5X, 0.75X, 1.5X, 2X
